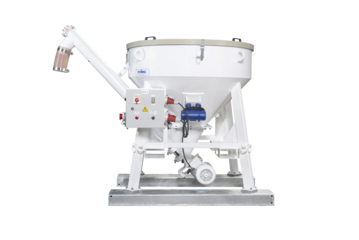

modul-S compact
Small silo system for efficient big bag processing
The m-tec® modul-S compact offers efficient and low-dust BigBag material processing – economical, user-friendly and, thanks to its low installation height, also ideal for applications where height restrictions – such as ceilings, roofs or driveways – make the use of conventional silos impossible.
Areas of application
In combination with mixing pumps or continuous mixers, the modul-S compact is suitable for a wide range of dry mortar applications – including 3D concrete printing or as a compact mini pump truck on a flatbed vehicle.
Scope of delivery
The modul-S compact comprises a small silo including a climbing screw for material discharge that can be operated via a control cabinet.
Options
For greater stability on uneven ground, the m-tec® modul-S compact is optionally available with silo planks; transfer hoods for large troughs of the processing machine.
Benefits
Whether classic dry mortar, special construction chemicals or mixtures for 3D concrete printing – the modul-S compact is suitable for all common bulk materials and applications.
The integrated screw conveyor is controlled via an intuitive control cabinet with rotary field detection and ensures reliable material transport. In combination with mixing pumps such as the duo-mix2000, a compact mini pump truck can be created that offers maximum flexibility on the construction site.
Increased efficiency
The use of big bags to fill the silo eliminates the time-consuming handling of bagged goods. This leads to considerable time and cost savings on the construction site.
Ease of use
The integrated control cabinet with rotary field detection via light signal enables simple and safe operation of the ascending screw.
m-tec technology for better building
m-tec develops and manufactures construction site technology for traditional applications and modern construction site requirements. From the transport and delivery of dry mortar products to their application on your construction site – we are your one-stop shop for everything you need. m-tec has made construction better, faster and, above all, more economical in almost 100 countries around the world.
Technical data
modul-S compact | |
| Flow rate: | approx. 4m³/h (dry material)* |
| Discharge screw: | DSD 125x1525 |
| Motor discharge screw: | 2,2 kW (400V, 50Hz, 3ph) |
| Vibrator: | 0,16 kW (400V, 50Hz, 3ph) |
| Silo contents: | approx. 0,8m3 |
| Operating pressure: | 0 bar |
| Dimensions without silo planks: | approx. 1.975 x 1.385 x 1.660 mm |
| Dimensions with silo planks: | approx. 2.155 x 1.385 x 1.790 mm |
| Empty weight: | approx. 580 kg |
*Depending on the consistency, quality and composition of the material.
